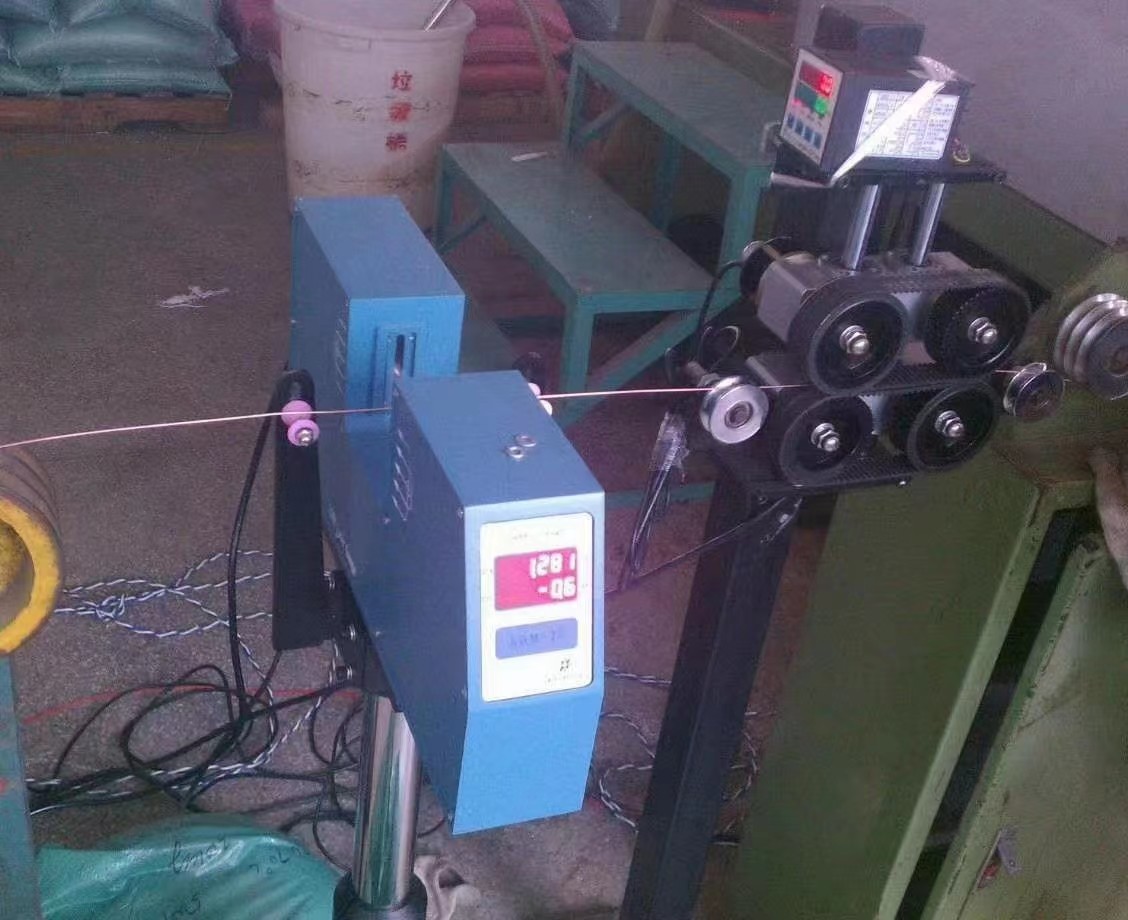

Wire, cable, pipe, Laser diameter gauge is the high-accuracy survey installment that uses the laser scan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of workpiece and size measurements.
1. Technical parameters
| Model | LDM-25 | LDM-50 | LDM-100B | LDM-150 |
| Measuring Range | 0.2-20mm | 0.2-45mm | 0.2-95mm | 0.2-145mm |
| Min Size | 0.2mm | 0.2mm | 0.2mm | 0.2mm |
| Max Size | 20mm | 45mm | 95mm | 145mm |
| Accuracy* | ±0.001 | ±0.002 | ±0.002 | ±0.01 |
| Repeatability** | 0.5μm | 0.5μm | 0.5μm | 1μm |
| Resolution | 0.001mm | 0.001mm | 0.001mm | 0.001mm |
| Dimension | 48.5x20x8.5cm | 48.5x20x8.5cm | 62x25x6cm | 92x29x9.5cm |
| Units of Measurement | mm | mm | mm | mm |
| Power | ~220V±15%, 50-60HZ |
| Temperature | -10~40℃ |
| Humidity | <85% RH |
| Gauge Head Serial I/O | Standard: RS485 Options:RS232 / USB |
| Communication Protocol | Modbus/Profibus |
| Presets | Diameter, +Tol,-Tol, Alarm Setting |
| Transparent Measurement | Option | Option | Option | Option |
| Control Output |
| Serial I/O | RS485 |
| Analogues Output | 16 bit ±10V DC Output |
| Relay Output | 2 Volt Free (Status, Upper Tolerance, Lower Tolerance) |
2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30WExternal dimensions:
Dimensions: LDM-25/LDM-50 Measuring head: 461mm×80mm×200mm
3. The Device with the following Characteristics
i. Can be connected PLC, industrial computer.
ii. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
iii. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic
feedback control to control the tolerance, improve product quality, reducing
consumption.
4. Display Controller (Model:DDC-7202, DDC-5)
i. It be used to remote display and control.
ii. Applicable to DC motors, VVVF motor.
iii.The controller can control the speed of extruder or the tractor according to the diameter tolerance.
Signal distance: More than 500m
Output voltage: ±10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions:164mm×85mm×280mm (Model:DDC-3)
100mm×100mm×120mm (Model:DDC-5)
Installation hole size: 152mm×76mm (Model:DDC-3)
90mm×90mm (Model:DDC-5)
